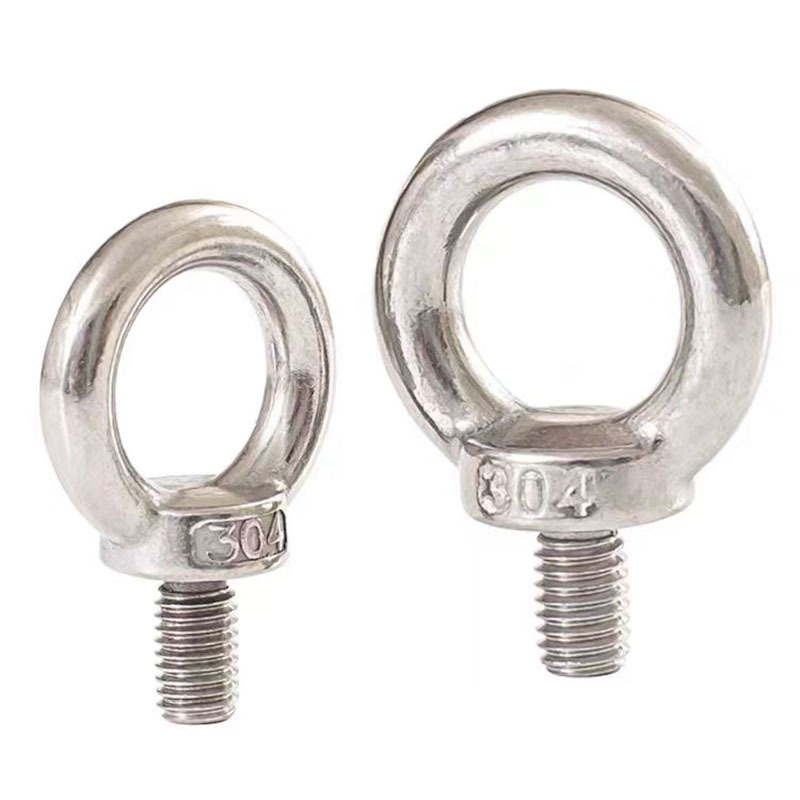

Stainless steel eyebolt stainless steel lifting eye nut

Stainless steel eyebolt DIN580

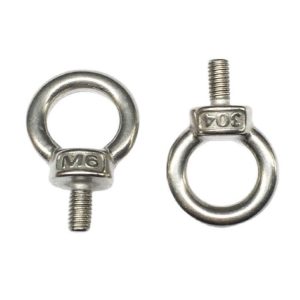

eyebolt

Material: A3 carbon steel, 304 stainless steel
Process: casting/polishing/roll teeth
Surface treatment: carbon steel galvanized or stainless steel natural color
In strict accordance with national standards or international standards to produce sling bolts, pull to meet or exceed the corresponding standards, to ensure the safety of use.
Can provide stainless steel carbon steel ring screws and stainless steel ring bolts SUS304, 316.

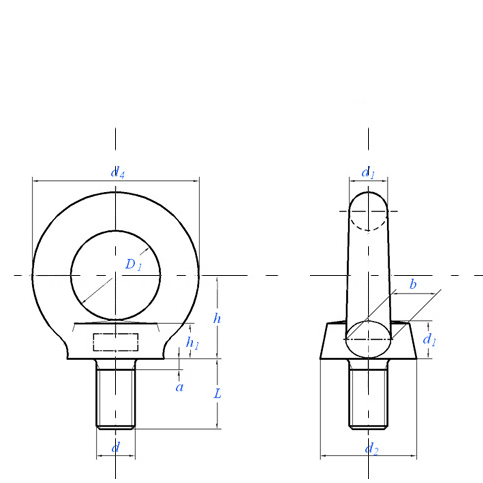

eyebolt drawing

Stainless steel eyebolt DIN580 standard:

Size Load Dimensions(mm) weight
d (tons) d2 d4 D1 L h1 h (kgs/100pcs)
M6 0.08 17 28 16 13 6 17 5
M8 0.14 20 36 20 15 6 18 6
M10 0.23 25 45 25 18 8 22 11
M12 0.34 30 54 30 22 10 26 18
M14 0.49 35 63 35 28 12 30 28
M16 0.7 35 63 35 28 12 30 28.5
M18 0.95 40 72 40 30 14 35 45
M20 1.2 40 72 40 30 14 35 45
M22 1.5 45 81 45 35 16 40 67
M24 1.8 50 90 50 38 18 45 87
M27 2.5 50 90 50 38 18 45 88
M30 3.6 65 108 60 45 22 55 166
M33 4.3 65 108 60 45 22 55 172
M36 5.1 75 126 70 55 26 65 265
M39 6.1 75 126 70 55 26 65 280
M42 7 85 144 80 65 30 75 403
M45 8 85 144 80 65 30 75 425
M48 8.6 100 166 90 70 35 85 638
M52 9.9 100 166 90 70 35 85 660
M56 11.5 110 184 100 80 38 95 880
M64 16 120 206 110 90 42 105 1240

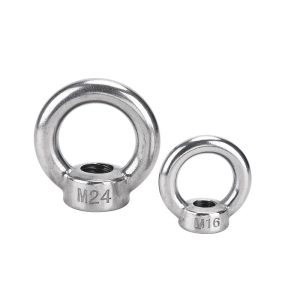

lifting eye nut DIN582

lifting eye nut

Using high quality raw materials casting of carbon steel rings nut and stainless steel rings nut, no pores, no cracking. Meets the requirement.
Carbon steel and 304 stainless steel ring bolts and nuts are available.

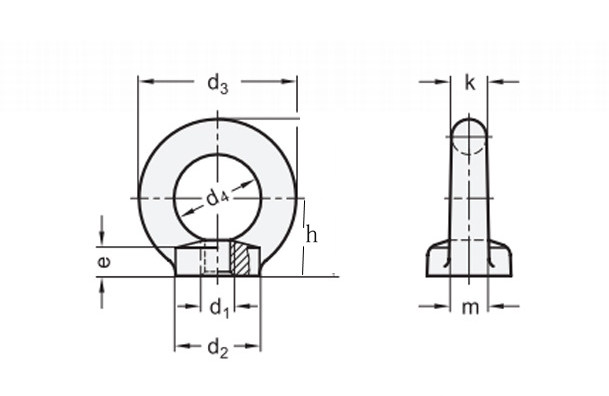

lifting eye nut drawing 2

stainless steel lifting eye nut DIN582 standard:

Size Load Dimensions(mm) weight
d (tons) d2 d3 d4 e h k (kgs/100pcs)
M6 0.08 20 36 20 8.5 18 8 4.9
M8 0.14 20 36 20 8.5 18 8 5
M10 0.23 25 45 25 10 22 10 9
M12 0.34 30 54 30 11 26 12 16
M14 0.49 35 63 35 13 30 14 24
M16 0.7 35 63 35 13 30 14 24
M18 0.95 40 72 40 16 35 16 36
M20 1.2 40 72 40 16 35 16 36
M22 1.5 45 81 45 18 40 18 58
M24 1.8 50 90 50 20 45 20 72
M27 2.5 50 90 50 20 45 20 70
M30 3.6 65 108 60 25 55 24 132
M33 4.3 65 108 60 25 55 24 130
M36 5.1 75 126 70 30 65 28 208
M39 6.1 75 126 70 30 65 28 202
M42 7 85 144 80 35 75 32 311
M45 8 85 144 80 35 75 32 304
M48 8.6 100 166 90 40 85 38 502
M52 9.9 100 166 90 40 85 38 495
M56 11.5 110 184 100 45 95 42 669
M64 16 120 206 110 50 105 48 930
